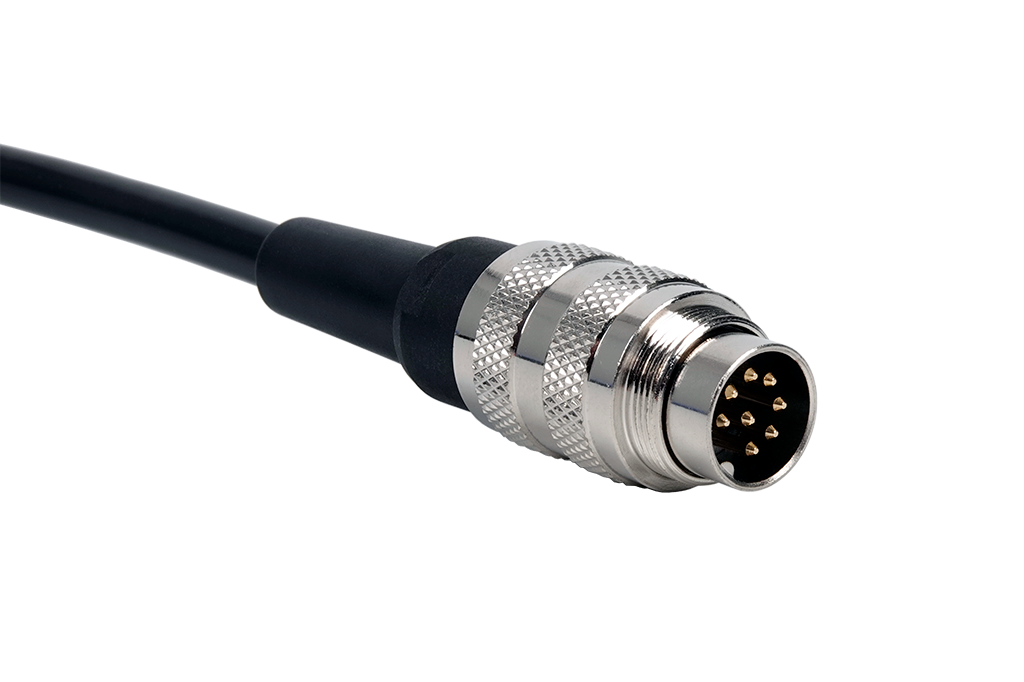

CLAAS 8 PIN, DIAGNOSTICS CABLE

Jaltest JDC530A9 - Claas 8-Pin Diagnostics Cable

The Jaltest JDC530A9 is a genuine Cojali 8-pin diagnostic cable for Claas agricultural equipment. As with the rest of the Claas cable family in the Jaltest lineup, this cable addresses the specific 8-pin diagnostic port configuration found on certain Claas tractors and harvesting machines. Claas has used multiple connector standards across its product range over the years, and the 8-pin variant covered by the JDC530A9 requires this specific cable for Jaltest communication. Without it, the Jaltest Link has no path to the machine's ECUs on these models.

What This Cable Does

The JDC530A9 connects the Jaltest Link interface to the 8-pin diagnostic port on Claas equipment. Once the connection is established, the Jaltest AGV software communicates with the machine's control units for fault diagnostics, live data, and calibration functions.

• Compatible brand: Claas agricultural equipment (models with 8-pin diagnostic connector)
• Typical applications: Claas tractors, combine harvesters, and forage harvesters with 8-pin diagnostic port
• Connector type: 8-pin Claas proprietary
• The 'A9' designation indicates Jaltest Link V9 compatibility
• Compatible Jaltest modules: Jaltest AGV (Agricultural Vehicles)
• Genuine Cojali product
• Listed in Jaltest 2025 Pricelist: Part number JDC530A9, MSRP 45.00

Understanding the Claas Cable Family

Claas produces some of the most technologically advanced agricultural equipment in the world — Lexion combines, Jaguar forage harvesters, and Axion/Arion tractor lines all carry sophisticated electronic systems. The higher price of the JDC530A9 (45 vs. 10 for the 7-pin JDC529A9) reflects the 8-pin connector's association with more complex or feature-rich machines. The full Claas cable set from Cojali/Jaltest includes:

• JDC519A — Claas and Renault (standard)
• JDC525A — Claas and Renault 14-pin
• JDC529A9 — Claas 7-pin
• JDC530A9 — Claas 8-pin (this cable)

Shops doing comprehensive Claas service work — particularly dealers or specialist ag repair operations handling the full Claas lineup — should assess which connector types appear in their typical machine population and stock accordingly.

Diagnostic Capabilities With Jaltest AGV

With the JDC530A9 connected and the Jaltest AGV license active, technicians can:

• Read and clear fault codes across engine, transmission, hydraulic, and body ECUs
• Monitor live parameter data for diagnostic and operational purposes
• Perform calibrations and parameter settings supported by Jaltest for Claas
• Access aftertreatment systems on emissions-equipped machines
• Carry out injector coding and DPF regeneration functions where applicable

Technical Details

• SKU / Part Number: JDC530A9
• Connector type: 8-pin Claas agricultural
• Manufacturer: Cojali (Jaltest)
• Compatible Software: Jaltest AGV (active license required)
• Compatible Link Version: V9 (A9 designation)
• Price (2025 Pricelist): 45.00

Why Buy From OEM Diagnostic Tools?

We have specialized in Jaltest since 2016 and carry the full Cojali agricultural cable catalog. If you are sorting out which Claas cable applies to your specific equipment, call us at 866-217-0063 — we will help you identify the right cable before you order. Free shipping, full manufacturer warranty, no guesswork.
