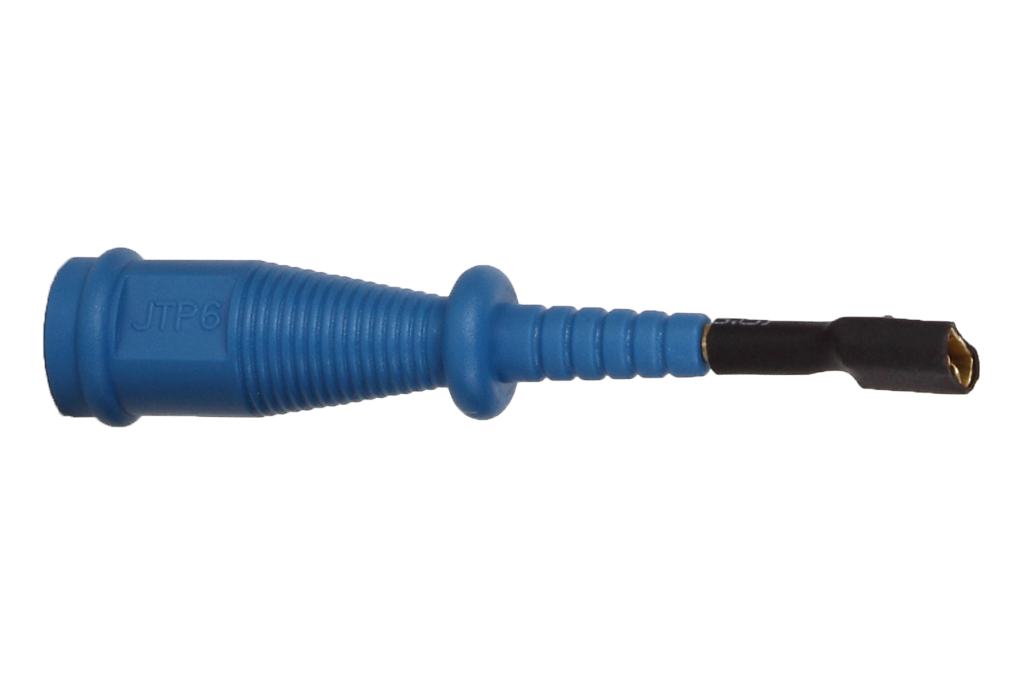

SOCKET WITH RETANGULAR TERMINAL 7x0,8MM

Jaltest JTP06 - Rectangular Female Pin (7 x 0.8 mm), Pair

The JTP06 is a pair of 7 mm x 0.8 mm rectangular female diagnostic pins (sockets) for the Jaltest multipin kit system. These are the large-format rectangular female pins in the Jaltest JTP series, designed for ECU connector terminal cavities that require a 7 x 0.8 mm flat female contact. Common in heavy-duty ECU connectors and industrial control modules, the JTP06 completes the rectangular female pin coverage in the Jaltest multipin kit. The JTP06 pair is included in the Jaltest Multipin Kit (part #70002001, $310.00) and is available individually for replacement use.

What These Pins Are For

The JTP06 rectangular female pins are inserted into the appropriate terminal cavities in large ECU connector housings for non-destructive back-probe access. With the JDC10AM2 or JDC20AM2 multipin cables attached, you route the ECU signal to your Jaltest Link or test equipment without disturbing the original wiring or risking connector damage.

The 7 x 0.8 mm rectangular female format is found in larger-format ECU connectors used in heavy-duty truck body controllers, power management modules, and industrial equipment control systems.

Pin Specifications

• Part Number: JTP06
• Type: Rectangular female pin (socket)
• Dimensions: 7 mm x 0.8 mm
• Quantity: Sold as a pair (2 pins)
• Compatible With: Jaltest multipin cables JDC10AM2 and JDC20AM2
• MSRP: $25.00 (pair)

Rectangular Pin Series

The Jaltest multipin kit covers two rectangular pin formats to handle the range of flat-terminal ECU connectors:

• JTP01 — 1.8 mm x 0.6 mm rectangular male pin (fine-pitch)
• JTP06 — 7 mm x 0.8 mm rectangular female pin (large-format — this item)

Who Needs the JTP06

Jaltest-equipped technicians doing ECU back-probing and circuit testing on heavy-duty vehicles and equipment with large rectangular connector terminals. If you are completing or supplementing a Jaltest multipin kit and need the large rectangular female socket coverage, the JTP06 is the correct part.
