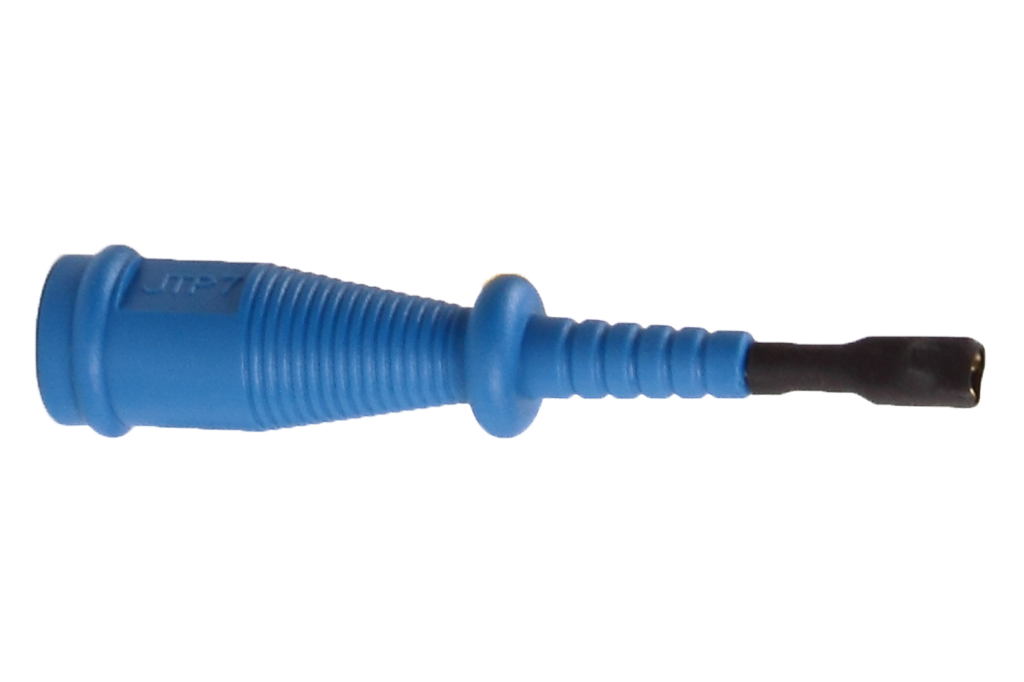

SOCKET WITH RECTANGULAR TERMINAL 3,3x0,7MM

Jaltest JTP07 — Rectangular Female Pin 3.3x0.7mm (Pair)

The JTP07 is a replacement rectangular female socket pin measuring 3.3mm x 0.7mm, sold as a pair, designed for use in the Jaltest Multipin Connection system. These pins are the termination points inside Jaltest's specialized multipin connector assemblies — the small, precise contacts that ensure a solid electrical connection when you're probing uncommon or manufacturer-specific diagnostic ports that don't use standard OBD, Deutsch 6-pin, or Deutsch 9-pin connectors.

If you're running the full Jaltest CV, OHW, AGV, or MHE diagnostic platform, you already know that reaching every ECU on every vehicle requires more than the three cables included in the base kit. The multipin connector system — of which the JTP07 is a core component — is how Jaltest handles those edge-case ports: agricultural implement connectors, proprietary manufacturer plugs, and multi-wire diagnostic sockets that require a custom pin configuration to make contact.

What the JTP07 Pin Does

Jaltest's multipin connector design uses a set of individually insertable pins that technicians configure into a multi-cavity housing to match the target vehicle's connector. The JTP07 provides the rectangular female contact (3.3mm wide x 0.7mm high) — a specific geometry used in certain European and commercial vehicle diagnostic port designs. When a male blade or tab on a vehicle-side connector measures 3.3x0.7mm, the JTP07 is the correct mating pin.

• Pin type: Rectangular female (socket) — accepts a matching male blade/tab terminal
• Pin dimensions: 3.3mm x 0.7mm contact face
• Sold as: Pair (2 pins per order)
• Color: Yellow — consistent with Jaltest multipin system color coding for easy identification in the shop
• Material: Professional-grade conductive metal construction for reliable signal integrity
• System compatibility: Designed for use with the Jaltest multipin connector housing and Jaltest Link V9 diagnostic interface

Part of the Jaltest Multipin Kit System

The JTP07 is one of ten pin types included in the Jaltest Multipin Kit (Part #70002001, MSRP 10.00). The full kit includes pairs of JTP01 through JTP10, plus the JDC10AM2 and JDC20AM2 multipin cables — giving you every pin geometry needed to cover the full range of diagnostic ports across commercial vehicles, off-highway equipment, agricultural machinery, and material handling equipment.

The complete Multipin Kit is also included as a standard component in every Jaltest diagnostics kit (CV, OHW, AGV, MHE), as well as the Jaltest Marine hardware kit and the Jaltest Data-Link. If you already own one of those kits, the JTP07 is your go-to replacement when a pin is damaged, bent, or lost during field use.

• Full Multipin Kit (70002001): Includes JTP01–JTP10 pairs + JDC10AM2 + JDC20AM2 cables — 10.00
• JTP07 alone: 5.00 per pair — order when you need a replacement for a specific pin type without buying the entire kit again

When You Need the JTP07

A technician needs the JTP07 when:

• A pin in the multipin connector assembly is bent or damaged from repeated insertion/extraction
• You're building a custom cable configuration to reach a specific vehicle port that uses the 3.3x0.7mm rectangular female contact geometry
• A pin was lost during disassembly in the field
• Your shop does high-volume diagnostic work and you want a backup set of every pin type on hand so downtime is zero when a pin fails

For shops running Jaltest across multiple technicians or multiple bays, keeping a stock of replacement pins for each type (JTP01–JTP10) is the same logic as keeping spare fuses in the toolbox. The cost is minimal; the cost of being unable to diagnose a truck or piece of equipment because you're missing a 5 pin is not.

Compatibility

• Compatible with all Jaltest Link V9 multipin connector assemblies
• Works with Jaltest CV (commercial vehicle), OHW (off-highway), AGV (agricultural), MHE (material handling), and Marine platforms
• For use with JDC10AM2 and JDC20AM2 multipin cables included in the Jaltest Multipin Kit
