JALTEST LINK KIT LCV US

Jaltest Link Kit LCV US (SKU: 79001002)

The Jaltest Link Kit LCV US is the complete out-of-the-box diagnostic system for light commercial vehicles in the US market. At $3,195, this kit includes the Jaltest Link V9 hardware interface plus the full Jaltest LCV software activation — everything needed to diagnose gas and diesel light-duty commercial vehicles at the dealer level, from Sprinter vans to Ford Transits to GM commercial chassis.

This is the entry point for shops that primarily service light commercial vehicles (vans, light-duty trucks, Class 1-3) and need a professional diagnostic tool that goes significantly further than a generic scan tool. If you are already running Jaltest CV for heavy trucks, this LCV kit can extend your coverage into the light-duty commercial space using the same Jaltest Link V9 hardware.

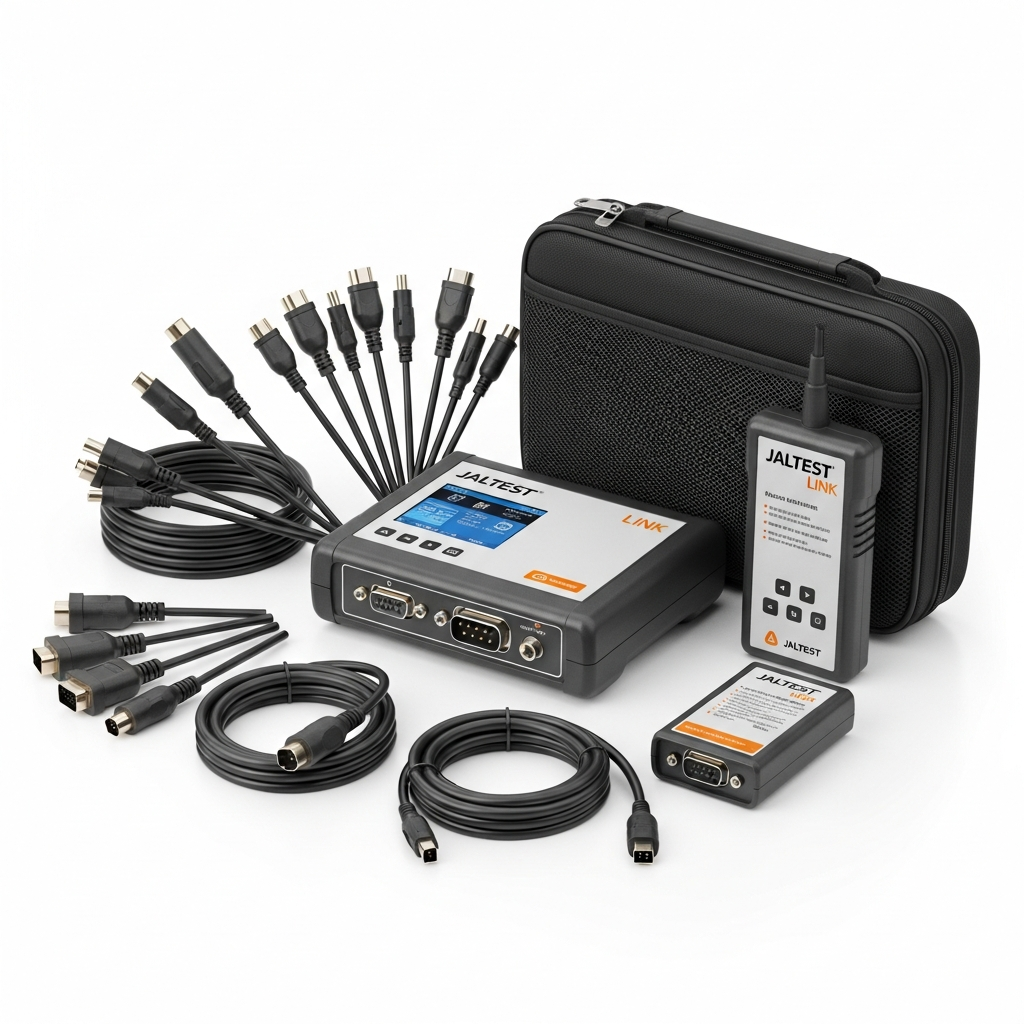

What Is in the Kit

• Jaltest Link V9 hardware interface — Bluetooth-enabled diagnostic module, 76% lighter than previous generation
• Jaltest LCV USA software activation — full one-year license covering all ECUs on light commercial vehicles
• Jaltest INFO — one year of technical information access (wiring diagrams, troubleshooting guides, component replacement procedures, repair times, TSBs)
• USB cable (JDC107.9)
• Deutsch 6-pin diagnostics cable (JDC211A)
• Deutsch 9-pin Type 2 green diagnostics cable (JDC217.9)
• OBD diagnostics cable (JDC213.9)
• Multipin kit (70002001)

LCV Coverage — What It Diagnoses

Jaltest LCV covers all major ECUs on light commercial vehicles — this is not a powertrain-only tool:

• Gas and diesel engines — read/clear codes, live data, DPF regens, injector coding, cylinder cut-out tests
• Transmissions — fault codes, live parameters, calibrations
• ABS and braking systems — full access including actuator tests and sensor monitoring
• Aftertreatment systems — DPF regenerations, SCR resets, dosing system diagnostics
• Body and chassis controllers — every ECU in the vehicle scanned in one session
• SGW bypass — Security Gateway bypass for late-model vehicles that require it

Compatible Brands

• Ford — Transit, F-Series light duty, E-Series
• Hino
• Dodge / Ram — ProMaster, Ram light commercial chassis
• Mercedes-Benz — Sprinter (gas and diesel variants)
• Mitsubishi Fuso
• GM / Chevrolet — Express, Savana, light-duty commercial platforms

Dealer-Level Capabilities

• DPF regenerations — forced regens without a dealer visit
• SGW bypass — required for certain Mercedes-Benz Sprinter and other late-model LCVs
• Injector coding — code new injectors to the ECU after replacement
• Cylinder Cut Out tests — isolate misfires and diagnose engine balance issues efficiently
• Parameter settings and calibrations — go beyond code reading to actual system adjustment
• All-systems scan — read every ECU in the vehicle in one session

Optional Cables for Expanded Coverage

The included cables handle the most common connections. These optional cables are available separately for specific brands or configurations:

• OBD215 — General Motors diagnostics cable ($120)
• JDC405A — GMC Chevrolet CAN Signal Wire cable ($210)
• JDCOBD1 — OBD adapter ($60)
• JDCOBD5 — OBD converter pin 1-pin 15 ($100)

Software and License Details

• Includes one year of Jaltest LCV software from activation date
• Jaltest INFO technical information included for first year
• Maximum 3 PC installations per license
• Requires Windows 10 or newer, 20GB+ storage, 2GB+ RAM, Intel processor generation 3+, Bluetooth
• Annual renewal: part 73101001 ($600/year)
• Jaltest INFO LCV annual renewal: part 29478 ($585/year)

Upgrade Path — Add More Coverage Later

This kit is built on the same Jaltest Link V9 hardware used across the entire Jaltest Diagnostics platform. As your shop grows, you can add coverage licenses to the same hardware without buying a new interface:

• Add Jaltest CV (heavy trucks, Class 3-8) — part 293209 ($3,000)
• Add Jaltest OHW (off-highway construction equipment) — part 293208 ($1,000)
• Add Jaltest AGV (agriculture) — part 293207 ($1,000)
• Add Jaltest MHE (material handling / forklifts) — part 75001004 ($500)
• Add Jaltest Marine — starting at $1,295 per module

Why Buy From OEM Diagnostic Tools?

We have specialized in Jaltest diagnostic systems since 2016. When you call us, you get a real person who knows whether the LCV kit is the right starting point for your shop or whether building from a Jaltest CV kit makes more sense. We stock the full Jaltest line — kits, cables, renewals, and add-ons. Free shipping on every order, free tech support at 866-217-0063, full manufacturer warranty, and honest guidance on the upgrade path.
