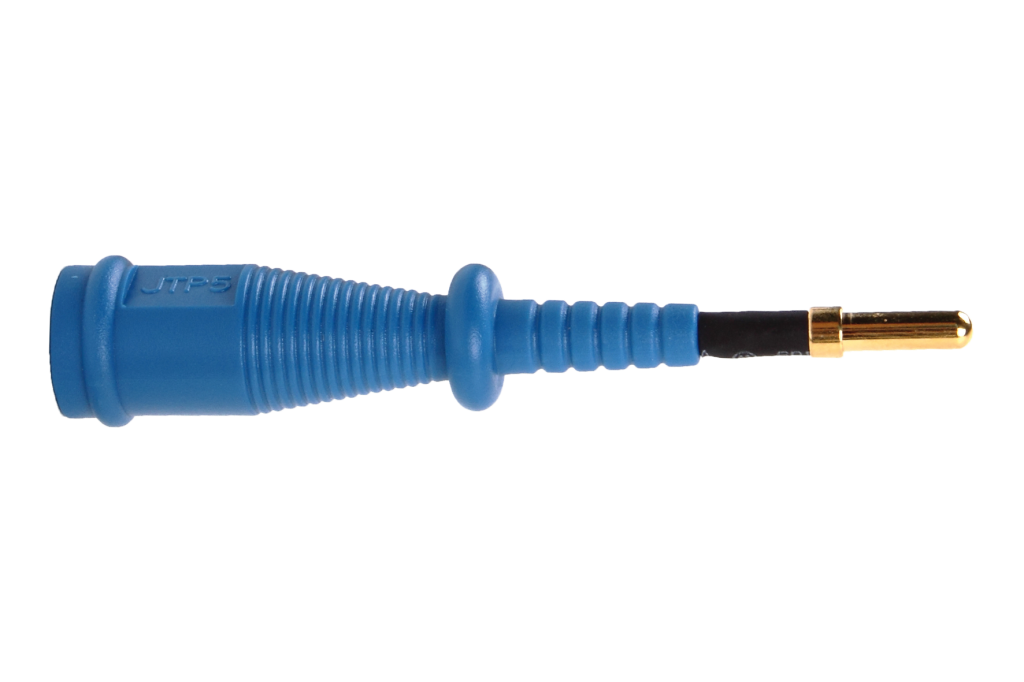

CONNECTOR WITH MALE CYLINDRICAL TERMINAL Ø 3MM

Jaltest JTP05 - Round Male Pin (Ø 3 mm), Pair

The JTP05 is a pair of 3 mm diameter round male diagnostic pins — the largest round pin in the Jaltest multipin kit system. These pins are used for back-probing larger ECU connector terminals and power distribution connectors that use 3 mm cylindrical contacts. Common on body controllers, relay blocks, and heavy-duty ECU interfaces on commercial vehicles and construction equipment, the JTP05 completes the Jaltest round-pin coverage at the large end.

What These Pins Are For

The JTP05 3 mm round male pins are inserted into the appropriate terminal cavities for non-destructive back-probe access on larger connectors. Once in place, you attach the JDC10AM2 or JDC20AM2 multipin cables to route the signal. Larger connectors like those using the 3 mm round terminal type are found in power supply connectors, high-current relay blocks, and certain heavy-duty ECU interfaces across commercial vehicles and industrial equipment.

Pin Specifications

• Part Number: JTP05
• Type: Round (cylindrical) male pin
• Diameter: Ø 3 mm
• Quantity: Sold as a pair (2 pins)
• Compatible With: Jaltest multipin cables JDC10AM2 and JDC20AM2
• MSRP: $25.00 (pair)

Round Pin Series — Complete Coverage

The Jaltest multipin kit provides three round male pin sizes to cover the full range of cylindrical terminals:

• JTP02 — Ø 1 mm (smallest round pin)
• JTP04 — Ø 1.5 mm
• JTP05 — Ø 3 mm (largest round pin — this item)

Having all three sizes in your kit means you can back-probe virtually any round-terminal ECU connector across the vehicle types covered by Jaltest.

Who Needs the JTP05

Jaltest users doing ECU and power connector back-probing on vehicles with larger 3 mm round terminal connectors. Available as a replacement for worn or missing pins from an existing multipin kit. Included in the full Jaltest Multipin Kit (part #70002001, $310.00).
