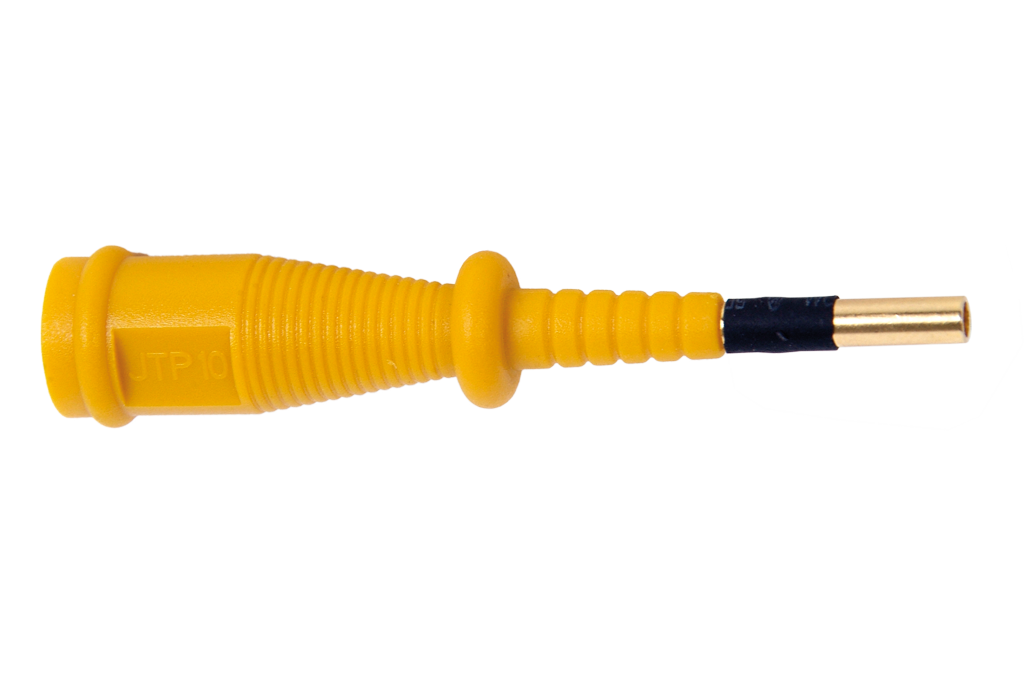

CONNECTOR WITH FEMALE CYLINDRICAL TERMINAL Ø 2,5MM

Jaltest JTP10 — Round Female Pin Ø2.5mm (Pair)

The JTP10 is a replacement cylindrical female pin (socket contact) measuring 2.5mm in diameter, sold as a pair, for the Jaltest Multipin Connection system. This is the smaller of the round female pin types in the Jaltest multipin kit — designed to mate with a male round pin of 2.5mm diameter on the vehicle or equipment side.

When a diagnostic port on a commercial vehicle, agricultural machine, or piece of off-highway equipment uses a small round male tab or pin measuring 2.5mm, the JTP10 is the correct receiving contact for your Jaltest multipin connector assembly. It installs into the appropriate cavity of the multipin housing, connects to the Jaltest Link V9 via JDC10AM2 or JDC20AM2 cable, and enables full Jaltest diagnostic access to that port.

Pin Specifications

• Pin type: Cylindrical female (socket) — receives a matching round male pin
• Pin diameter (socket ID): Ø2.5mm
• Sold as: Pair (2 pins per order)
• Color: Yellow — standard Jaltest multipin system color coding
• Material: Professional-grade conductive metal, corrosion-resistant for long service life
• System compatibility: Jaltest Link V9 multipin connector assembly

Part of the Jaltest Multipin Kit System

JTP10 is one of ten pin types in the Jaltest Multipin Kit (Part #70002001, MSRP $310.00). The kit includes pairs of JTP01–JTP10 plus JDC10AM2 and JDC20AM2 multipin cables. This complete set is included with every Jaltest platform kit (CV, OHW, AGV, MHE), the Marine hardware kit, and the Data-Link.

Order JTP10 individually when you need to replace a damaged or missing Ø2.5mm female pin without purchasing the entire kit.

Understanding Jaltest Round Female Pins: JTP10 vs. Other Sizes

The Jaltest multipin system includes multiple cylindrical female pin sizes to cover the range of round male pins encountered across different vehicles and equipment. The JTP10 at Ø2.5mm is the smallest round female contact in the standard kit. If you need to confirm the correct pin size for a specific vehicle port, measure the male pin on the vehicle side — the JTP10 mates with 2.5mm diameter round male contacts.

• JTP10: Ø2.5mm female socket — for Ø2.5mm male pins on vehicle side
• Other JTP sizes cover larger and rectangular geometries

Compatibility

• For use with Jaltest Link V9 multipin connector assemblies
• Compatible with Jaltest CV, OHW, AGV, MHE, and Marine diagnostic platforms
• Designed for use with JDC10AM2 and JDC20AM2 multipin cables
