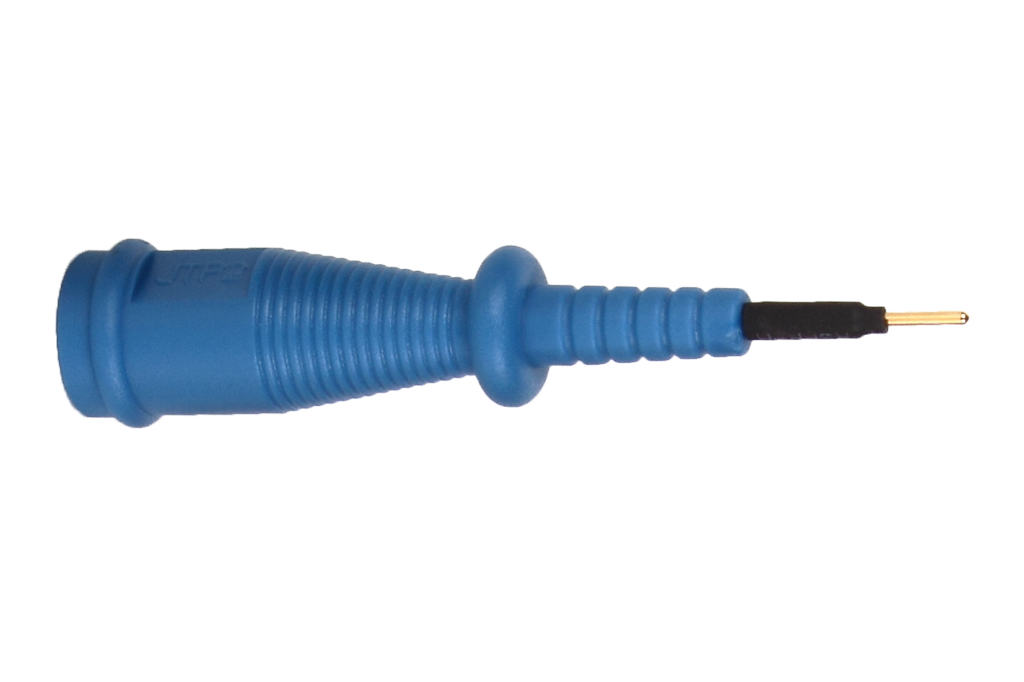

CONNECTOR CYLINDRICAL MALE TERMINAL Ø 1,5MM

Jaltest JTP02 - Round Male Pin (Ø 1 mm), Pair

The JTP02 is a pair of 1 mm diameter round male diagnostic pins for the Jaltest multipin kit system. These are the smallest round male pins in the Jaltest JTP pin series, designed for fine-pitch ECU connectors where a 1 mm cylindrical terminal is required for back-probing or circuit testing. The JTP02 pair is included in the Jaltest Multipin Kit (part #70002001, $310.00) and is available individually for replacement or supplemental use.

What These Pins Are For

The JTP02 1 mm round pin is inserted alongside the existing terminal in a connector housing to provide a test point — you then connect the JDC10AM2 or JDC20AM2 multipin cables to route the signal to your Jaltest Link or test equipment. The 1 mm round pin covers fine-pitch connectors where the terminal cavity is too small for larger pins. These connectors are common on European commercial vehicle ECUs and certain marine engine control modules.

Pin Specifications

• Part Number: JTP02
• Type: Round (cylindrical) male pin
• Diameter: Ø 1 mm
• Quantity: Sold as a pair (2 pins)
• Compatible With: Jaltest multipin cables JDC10AM2 and JDC20AM2
• MSRP: $25.00 (pair)

Round Pin Series in Context

The Jaltest multipin kit covers three round male pin sizes:

• JTP02 — Ø 1 mm (this item — smallest round pin)
• JTP04 — Ø 1.5 mm
• JTP05 — Ø 3 mm (largest round pin)

The 1 mm round male pin covers the finest-pitch round terminal connectors. The JTP03 (1.5 mm round female) is the socket counterpart to the JTP04 round male pin of the same diameter.

Who Needs the JTP02

Jaltest users doing ECU connector back-probing where the connector uses 1 mm round male terminals. Available as a replacement for pins worn or lost from an existing Jaltest multipin kit. Included in the full Jaltest Multipin Kit (part #70002001, $310.00).
